Backup (Report) Overview for AhsayACB

Backup Overview

This feature displays the backup report logs for each backup set. There are four (4) filters that can be applied on this feature:

• Date
• Backup Set
• Destination
• Status

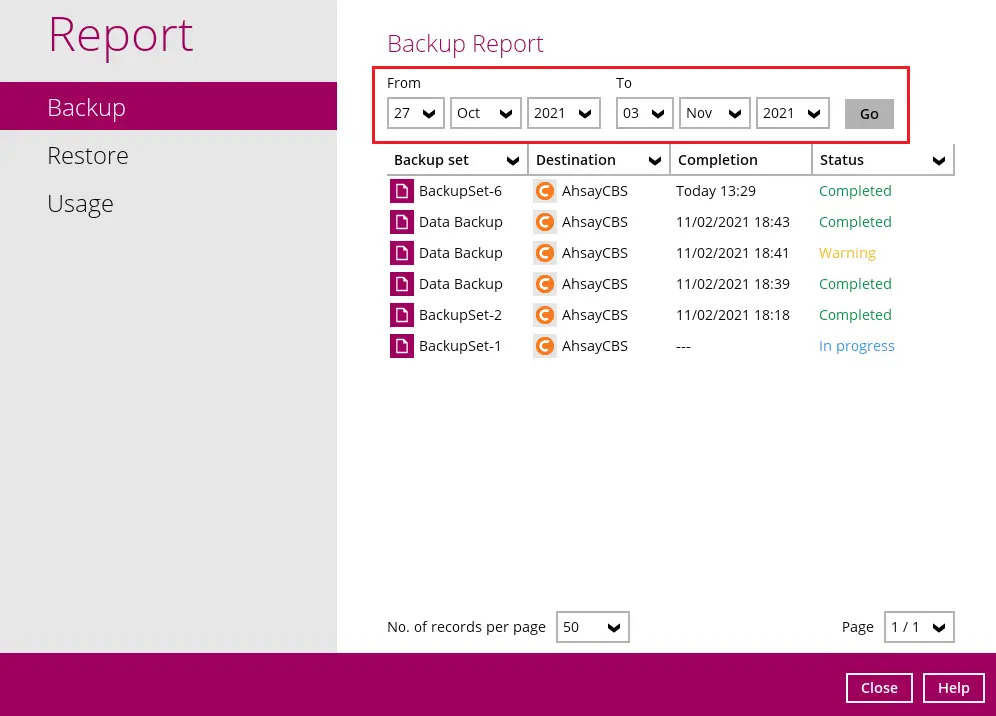

Date

Use this filter to display all the available backup report(s) within a date range.

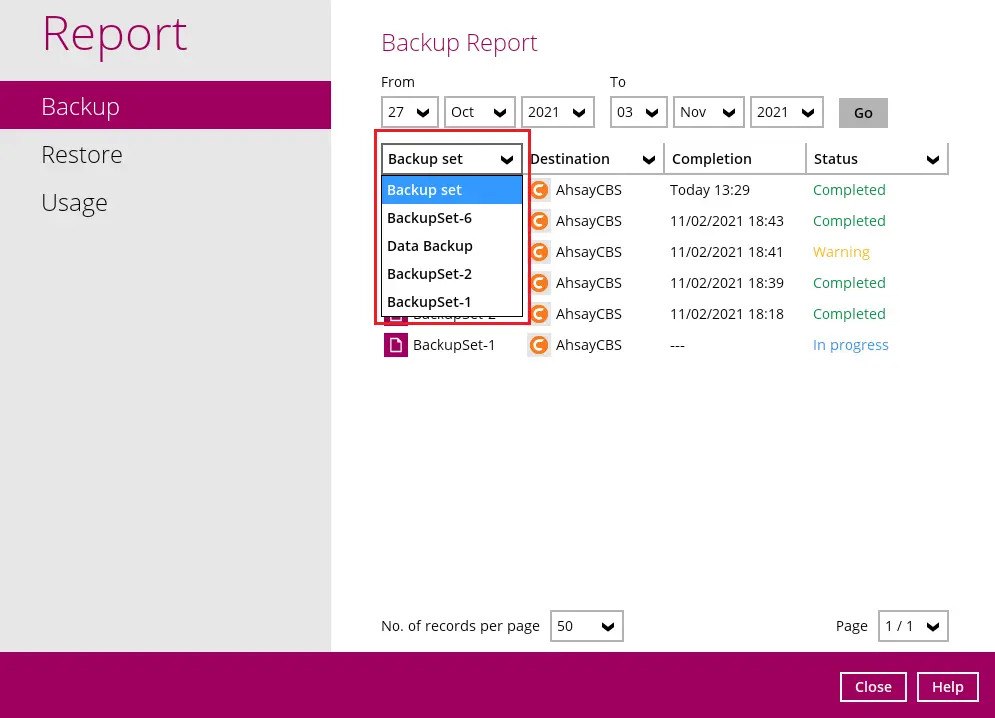

Backup Set

Use this filter to display all the available backup set(s) with a backup report. Then select which backup set with backup report that you would like to view.

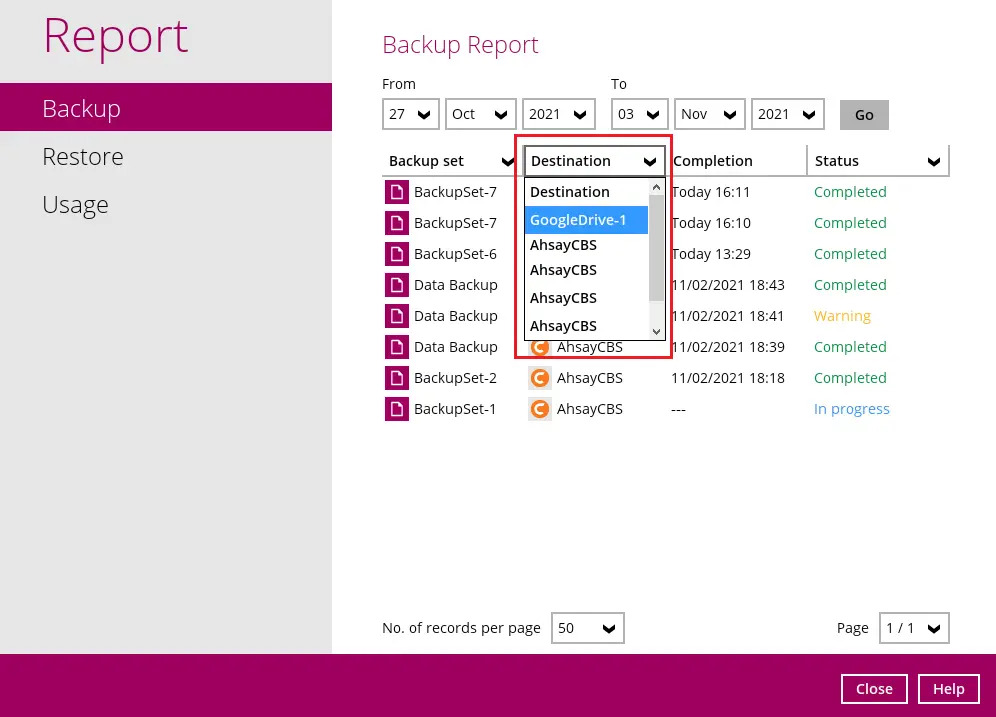

Destination

Use this filter to view the backup report for the selected storage location.

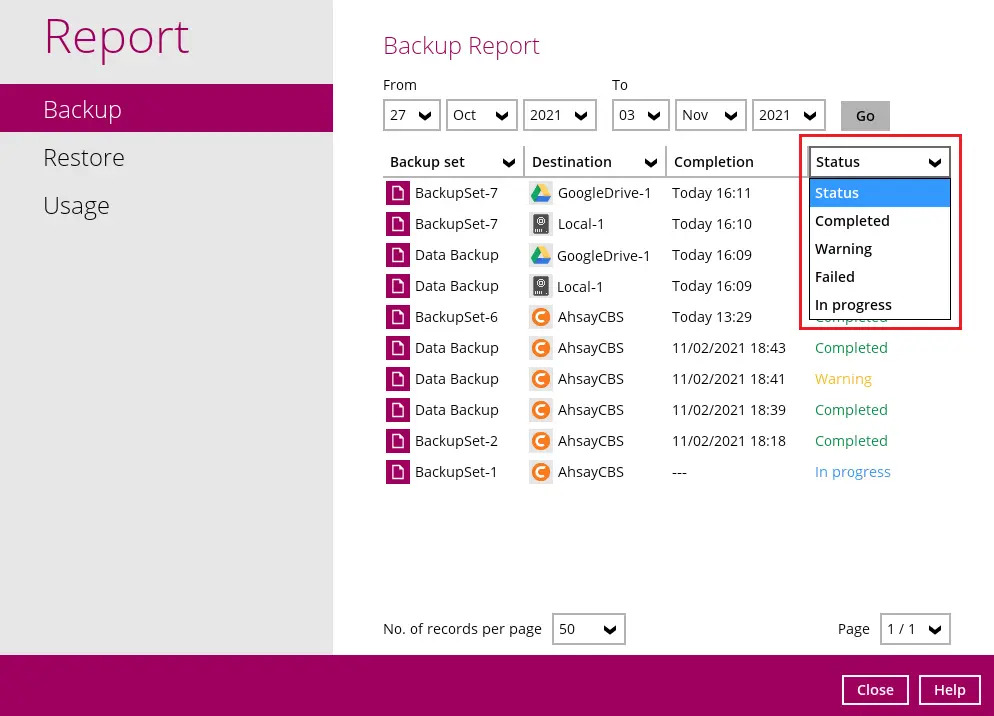

Status

Use this filter to view all the backup report(s) with the same status (i.e., Completed, Warning, Interrupted, Interrupted with error(s), Failed and In progress).

Viewing Backup Log

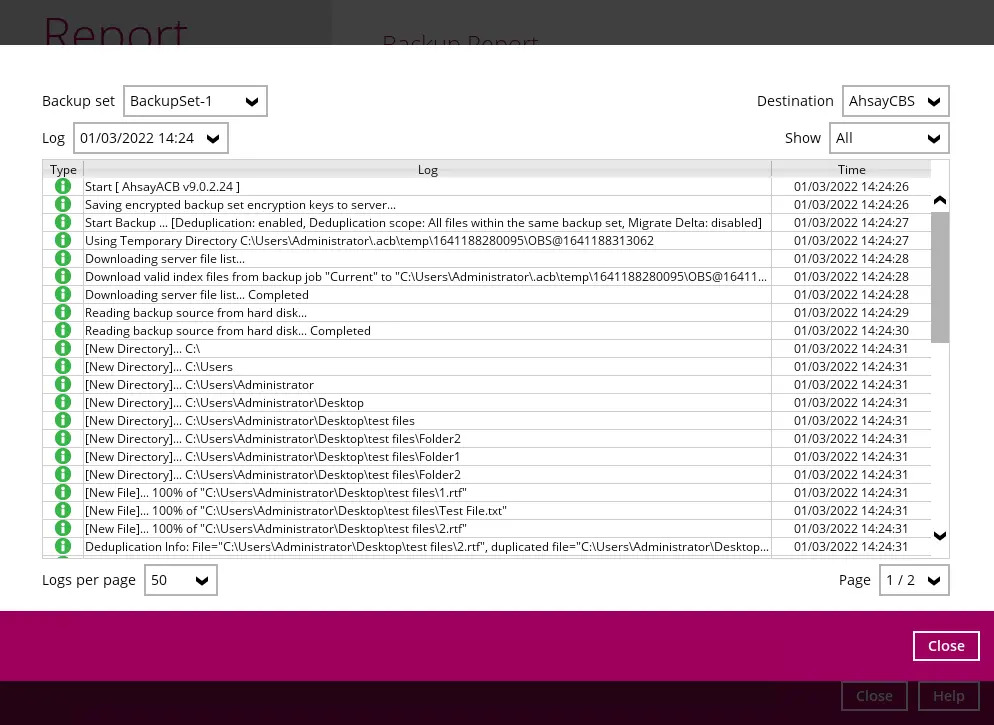

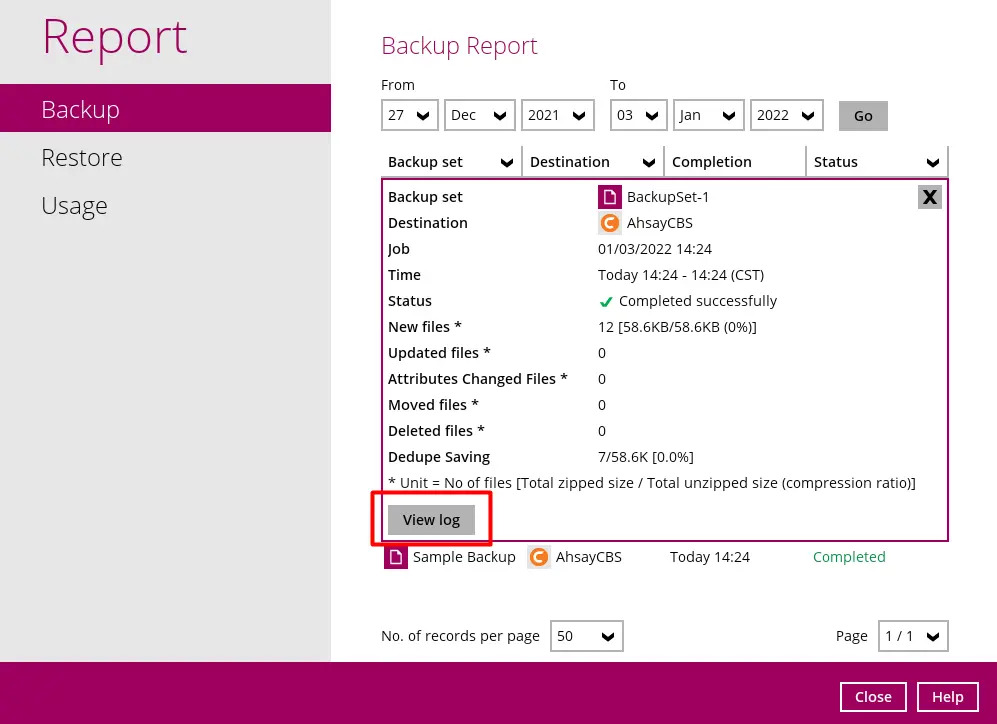

1. Select and click the backup report, then click the View log button.



2. The Backup set, Destination, Log Date and Time, Status, the number of Logs per page, and Page can be filtered when viewing the backup report.
